After completing this lesson, you’ll be able to:
Once a published parameter has been created, it can be shared between readers, writers, or transformers. A shared parameter is used in two or more places. The user is only prompted once, but the value is used for each linked parameter. This is beneficial when running a workspace using multiple transformers with a repeating parameter that is dependent on the user. Shared parameters are also useful in the case of writing to the same location, as demonstrated in the example below.
You can also use shared private parameters if you have a value you want to use in several places in the workspace, but that does not need to be exposed to the end-user. For example, many spatial transformers have a Tolerance parameter: the distance, in ground units, within which the transformer will process features. With a shared private parameter, you can set one value that sets the Tolerance for every eligible transformer in the workspace.
In the starting workspace, two data flows branch from the BikePath_M shapefile. The LineJoiner is used to join multiple line segments into one. The StatisticsCalculator has been set to calculate the total number of segments per PathName, and the total length of these segments.
The task for this exercise is to set up a shared published parameter so that two writers (MapInfo and CSV) are set up to write to the same folder as defined by the user. Each run will prompt the user to enter a folder name that is used for both writers. Without setting a shared published parameter, the folder location would have to be specified twice.
Open the starting workspace in FME Workbench (2023.0 or later).
In the Navigator window, right-click on User Parameters and select Manage User Parameters.
Then, click the Insert icon (green plus sign) and choose File/Folder/Url as the parameter type:
In the Add/Edit User Parameter dialog, enter the following parameters:
| Parameter Identifier | OutputFolder |
| Prompt | Folder Name to Write Data: |
| Published | Checked |
| Required | Checked |
| Disable Attribute Assignment | Unchecked |
| Items to Select | Folders |
| Access Mode | Read |
| Path Selection | Single Path |
| Conditional Visibility | Unchecked |
| Default Value | SharedParameterExample |
Your dialog should look like this:
Click OK.
Add a CSV writer and leave the Dataset blank. Set the CSV File Definition to Automatic.
Click OK. Set the CSV File Name to "Bike Path Statistics". Click OK.
Connect the writer feature type to the Summary output port on the StatisticsCalculator.
Add a MapInfo MITAB writer and leave the Dataset blank. Set the Table Definition to Automatic.
Click OK. Set the Table Name to "Bike Paths". Click OK.

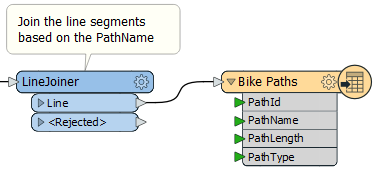

Connect the LineJoiner to the Bike Paths MITAB writer feature type.
In the Navigator, expand the CSV writer. Right-click on the Destination and select Link to a Parameter.
Select the OutputFolder parameter.
Repeat this step for the MITAB Writer.
Both writers are now sharing the OutputFolder User Parameter.
Set the workspace to Prompt for User Parameters from the Run menu and enter a folder name.
Right-click on one of the writers and select Open Containing Folder.
Both the MITAB and CSV files are written to the same folder.
User parameters like this one that just provides a folder name instead of an entire path will be written to the folder containing the workspace. In this case, since we are using a workspace template, it will be somewhere in your temporary files depending on your operating system. You can provide a full path if you prefer.
